| 品牌 : | DE | 型號 : | BV-404TC |
| 材質 : | 不銹鋼 | 連接形式 : | 對夾 |
| 適用介質 : | 食用油 | 公稱通徑 : | DN15-DN80 |
| 結構形式 : | 浮動球球閥 | 壓力環境 : | 常壓 |
| 工作溫度 : | 常溫 | 標準 : | 3A |
| 流動方向 : | 換向 | 驅動方式 : | 手動 |
| 類型(通道位置) : | 三通式 | 訂貨號 : | BV-404TC |
| 貨號 : | BV-404TC | 3C閥門類別 : | 衛生 |

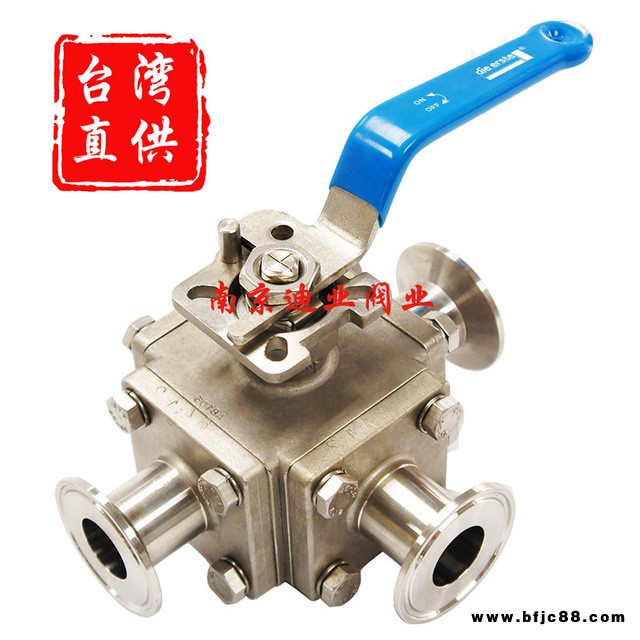

DIRECT MOUNT 3-WAY/4-WAY CITY FILLED BALL VALVE
Body Material ASTM CF8M, DIN 1.4408
Size Range 1/2" - 2" (DN15~DN50) Pressure Rating 1000PSI (PN63)
Size Range 2-1/2" - 3" (DN65~DN80) Pressure Rating 800PSI (PN50)
End Connec?0?9on Tri-clamp Standards ANSI B16.34
Temperature Range -4°F to 350°F (-20°C to 180°C) with PTFE seats
Applica?0?9on Limita?0?9on Referring to below diagram, there is a limita?0?9on to the differen?0?9al pressure between flow P2 and P1.Where P2>P1, leakage from P2 to P1 could occur. The e logic follows for other L/T flow patterns.
Note: Torque measured at ambient temperature with no loading; safety factor is not included. Select size(s) may be under development, please consult with us for details.
