| 加工定制 : | 否 | 品牌 : | 美國UVP |
| 型號 : | UVGL-58 | 種類 : | 手提式紫外分析儀 |
| 紫外功率 : | 6W | 紫外波長 : | 365nm254 nm |
| 濾色片規格 : | 2MM | 適用范圍 : | 熒光檢查 |

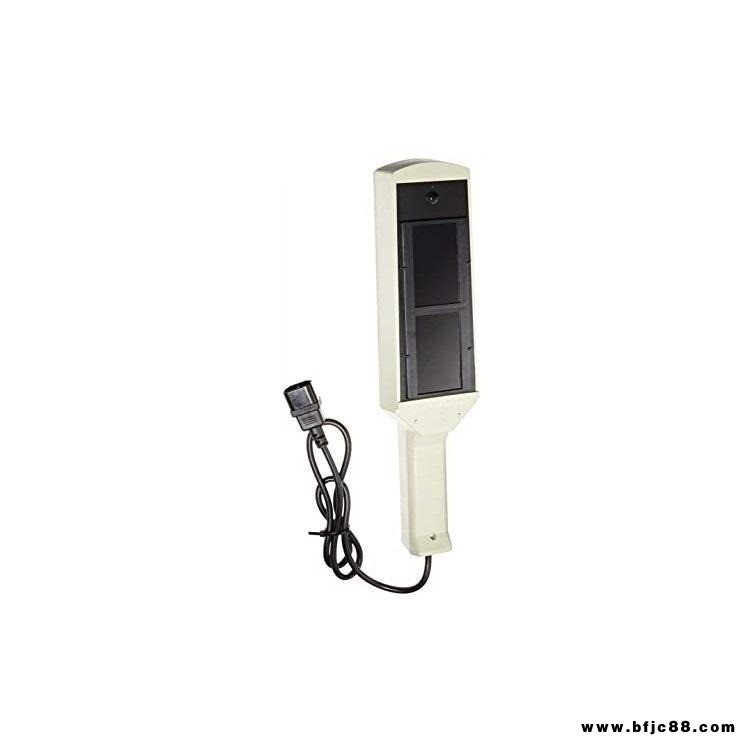

美國UVP公司UVGL-58雙波長紫外線燈
Analytick Jena AG
Handheld UV Lamps手持式紫外線燈
UVGL-58手提式紫外線燈為6瓦，長波365nm和短波254nm的雙波長組合。
另可提供長波、中波、短波或者長波和短波的雙波長組合。
主要特點：
功率為6W
重量輕，有利于手提操作
堅固耐用的塑料外殼
可選擇短波紫外線，長波紫外線或短波和長波的雙波長紫外組合。
長波和短波的雙波長模式具有開關可實現波長之間的轉換。
符合人體工程學設計的手柄。輕量級的手提燈，方便測試需求操作。
產品規格：
功率：6W
波長：2UV；長波365nm和短波254nm
外殼：塑料外殼
尺寸：378×81×64mm
燈架：247x330mm
型號：
Part Numbers型號 | |||
型號 | 貨號 | 功率/波長 | 可替換燈管 |
UVG-54 | 95-0004-10 | 6W，254nm，手提短波紫外線燈 | 34-0013-01 |
UVGL-55 | 95-0005-06 | 6W，2UV，365nm/254nm，雙波長紫外燈 *Multi-band split tube lamp | 34-0034-01 365nm 34-0013-01 302nm |
UVGL-58 | 95-0007-06 | 6W，2UV,254nm/365nm，手提雙波長紫外燈 | 34-0034-01 365nm |
UVL-56 | 95-0006-03 | 6W, 365nm，手提長波紫外燈 | 34-0034-01 |
UVM-57 | 95-0104-02 | 6W，302nm，手提中波紫外線燈 | 34-0044-01 |
J-129 | 98-0016-03 | Lamp Stand，燈架 | |
Part Numbers | ||||
Model | 115V | 230V | Description | Filters |
UVG-54 | 95-0004-09 | 95-0004-10 | Handheld UV Lamp, 254nm | 98-0004-03 |
UVGL-55* | 95-0005-05 | 95-0005-06 | Handheld UV Lamp, 254nm /365nm | 98-0005-03 |
UVGL-58 | 95-0007-05 | 95-0007-06 | Handheld UV Lamp, 254nm & 365nm | 98-0004-03 |
UVL-56 | 95-0006-02 | 95-0006-03 | Handheld UV Lamp, 365nm | 98-0006-03 |
UVM-57 | 95-0104-01 | 95-0104-02 | Handheld UV Lamp, 302nm | 98-0004-03 |
UVL-26 | 95-0275-01 | 95-0275-02 | 6 Watt, 365nm | 38-0182-05 |
J-129 | 98-0016-03 | Lamp Stand | ||
Replacement Tube | 34-0013-01 | 6 Watt | ||
Replacement Tube | 34-0015-01 | 6 Watt | ||
Replacement Tube | 34-0034-01 (365nm) | 6 Watt | ||
Replacement Tube | 34-0034-01 | 6 Watt | ||
Replacement Tube | 34-0044-01 | 6 Watt | ||
